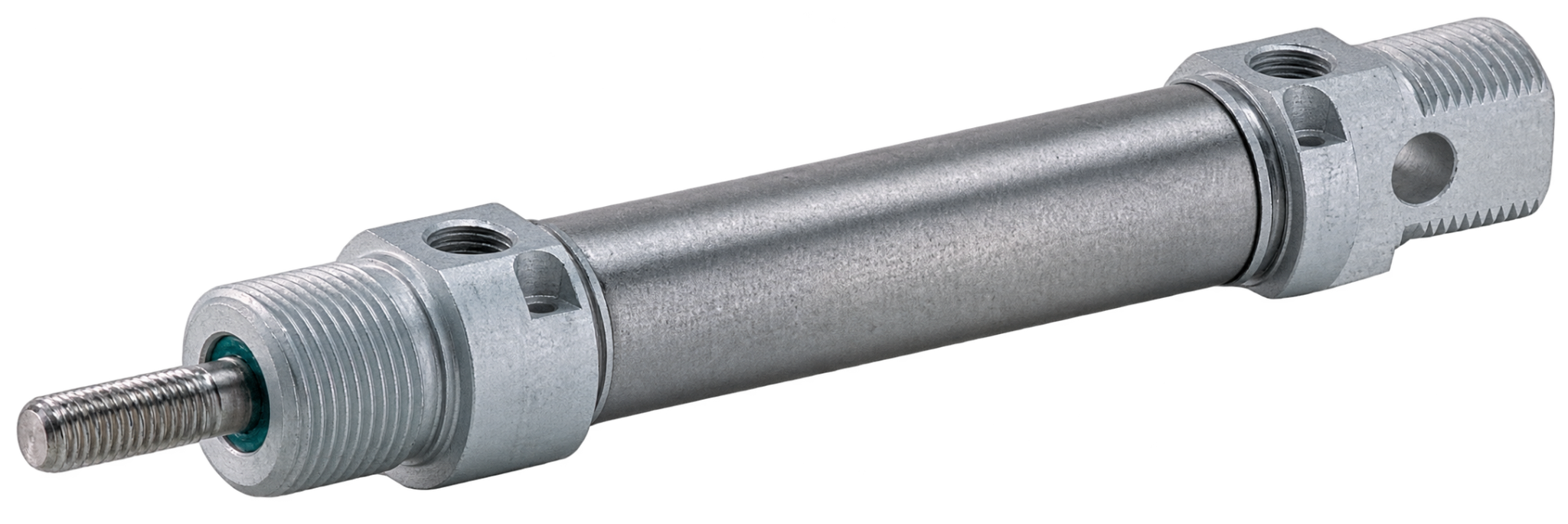

ISO 6432 Cylinders


Climax® Pneumatics offers a complete range of ISO 6432 cylinders produced in our Easley, South Carolina facility.
Please download the full catalog at the following link:
 ISO 6432 Catalog download
NEW 2D and 3D CAD Generator Link
Common Bores and Strokes produced. Please note, we produce to order, so all strokes are considered standard for us.
Select the model number to order or search by specific bore
ISO 6432 Single Acting, Non-Magnetic, Non-cushioned
Bore X Stroke 10mm 25mm 50mm
16  C16SE010 C16SE025  C16SE050
20 C20SE010 C20SE025  C20SE050
25 C25SE010  C25SE025  C25SE050

ISO 6432 Single Acting, Magnetic, Non-cushioned
Bore X Stroke 10mm 25mm 50mm
16 C16SEM010 C16SEM025  C16SEM050
20 C20SEM010 C20SEM025 C20SEM050
25 C25SEM010 C25SEM025 C25SEM050
ISO 6432 Double Acting, Non-Magnetic, Non-Cushioned
Stroke X Bore 10mm 25mm 50mm 80mm 100mm   125mm 160mm  200mm
16 C16DE010 C16DE025 C16DE050 C16DE080 C16DE100 C16DE125 C16DE160 C16DE200
20 C20DE010 C20DE025 C20DE050 C20DE080 C20DE100 C20DE125 C20DE160 C20DE200
25 C25DE010 C25DE025 C25DE050 C25DE080 C25DE100 C25DE125 C25DE160 C25DE200

ISO 6432 Double Acting, Magnetic, Non-Cushioned
Stroke X Bore 10mm 25mm 50mm 80mm 100mm   125mm 160mm  200mm
16 C16DEM010 C16DEM025 C16DEM050 C16DEM080 C16DEM100 C16DEM125 C16DEM160 C16DEM200
20 C20DEM010 C20DEM025 C20DEM050 C20DEM080 C20DEM100 C20DEM125 C20DEM160 C20DEM200
25 C25DEM010 C25DEM025 C25DEM050 C25DEM080 C25DEM100 C25DEM125 C25DEM160 C25DEM200



ISO 6432 Double Acting, Non-Magnetic, Adj. Cushioning
Stroke X Bore 10mm 25mm 50mm 80mm 100mm   125mm 160mm  200mm
16 C16DEA010 C16DEA025 C16DEA050 C16DEA080 C16DEA100 C16DEA125 C16DEA160 C16DEA200
20 C20DEA010 C20DEA025 C20DEA050 C20DEA080 C20DEA100 C20DEA125 C20DEA160 C20DEA200
25 C25DEA010 C25DEA025 C25DEA050 C25DEA080 C25DEA100 C25DEA125 C25DEA160 C25DEA200

ISO 6432 Double Acting, Magnetic, Adj. Cushioning
Stroke X Bore 10mm 25mm 50mm 80mm 100mm   125mm 160mm  200mm
16 C16DEMA010 C16DEMA025 C16DEMA050 C16DEMA080 C16DEMA100 C16DEMA125 C16DEMA160 C16DEMA200
20 C20DEMA010 C20DEMA025 C20DEMA050 C20DEMA080 C20DEMA100 C20DEMA125 C20DEMA160 C20DEMA200
25 C25DEMA010 C25DEMA025 C25DEMA050 C25DEMA080 C25DEMA100 C25DEMA125 C25DEMA160 C25DEMA200
